TP Link AX1800 5G Wireless Dual-Band Gigabit Router - White | ARCHER NX200

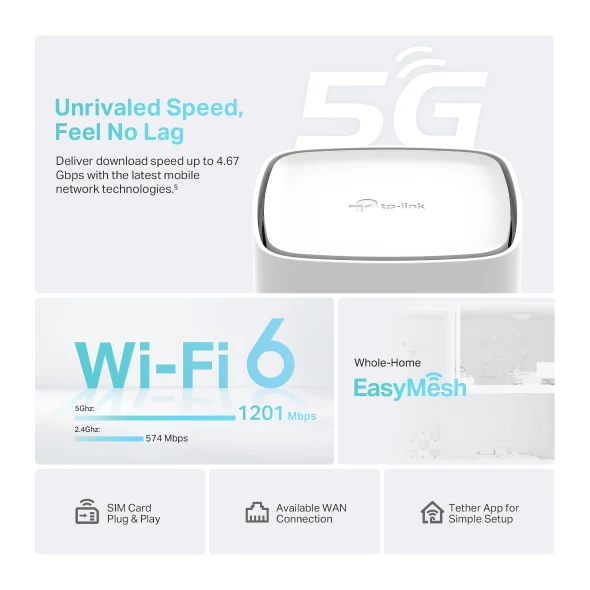

Boost Your 5G Speed

Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.

AX1800 Dual-Band Wi-Fi 6 Speed

1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).

Plug & Play

Enjoy 5G network right after inserting a SIM card.

EasyMesh-Compatible

Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

Gigabit WAN/LAN Port

The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

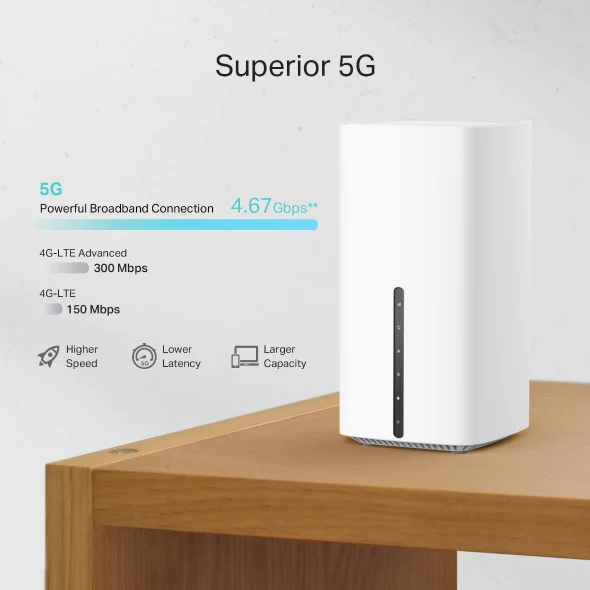

Superior 5G – A Revolutionary Experience

Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.

• 5G Powerful Broadband Connection - 4.67 Gbps
• 4G-LTE Advanced - 300 Mbps
• 4G-LTE - 150 Mbps
• Higher Speed
• Lower Latency
• Larger Capacity

Share 5G Speed with Reliable Wi-Fi

Thanks to cutting-edge 5G tech, NX200 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

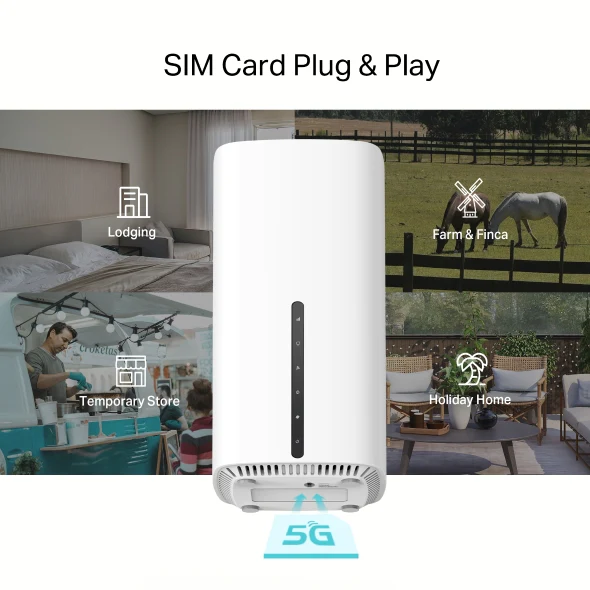

Plug and Play, Enjoy 5G Network Everywhere - Simple, just one SIM card

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

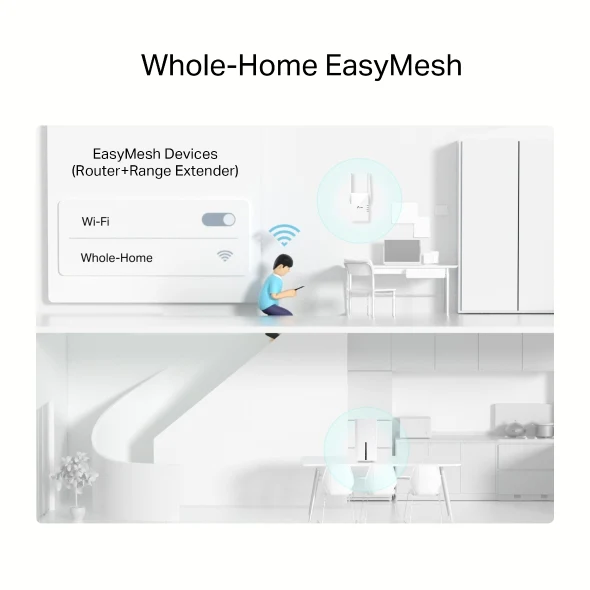

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

• WiFi Dead Zone Killer: Eliminate weak signal areas with WiFi coverage for the whole house
• Smart Roaming: Uninterrupted streaming when moving around your home
• One WiFi Name: No more switching WiFi network names

Available WAN Connection Backup

The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Use

Set up the Archer NX200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Key Features:

Interface

• 1 x 10/100/1000 Mbps LAN/WAN Port
• 2 x 10/100/1000 Mbps LAN Ports
• 1 x Nano SIM Card Slot
• 2 x External SMA-F Antenna Interface

Reception Sensitivity

• 5 GHz: 11a 54M:-80 dBm, 11ax HE20:-68 dBm, 11ax HE40:-65 dBm, 11ax HE80:-62 dBm, 11ac VHT20:-76 dBm, 11ac VHT40:-72 dBm, 11ac VHT80:-68 dBm, 11n HT20:-79 dBm, 11n HT40:-75 dBm
• 2.4GHz: 11g 54M:-78 dBm, 11ax HE20:-65 dBm, 11ax HE40:-62 dBm, 11ac VHT20:-73 dBm, 11ac VHT40:-68 dBm, 11n HT20:-75 dBm, 11n HT40:-72 dBm

Network Type

• 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
• FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
• TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
• DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Network Services Enabled by Default

• Web Server: Manage and configure device through web (HTTP/HTTPS) (Port: 80/443, Protocol: TCP)
• DHCP Server: IP address assignment (DHCP) (Port: 67, Protocol: UDP)
• IPv6 DHCP Server: IP address assignment (DHCPv6) (Port: 547, Protocol: UDP)
• DNS: DNS (Port: 53, Protocol: TCP)
• App management: Manage and configure device through app (Port: 22, Protocol: TCP, Port: 20002, Protocol: TCP)

System Requirements

• Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS,
• NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser
• Nano SIM Card

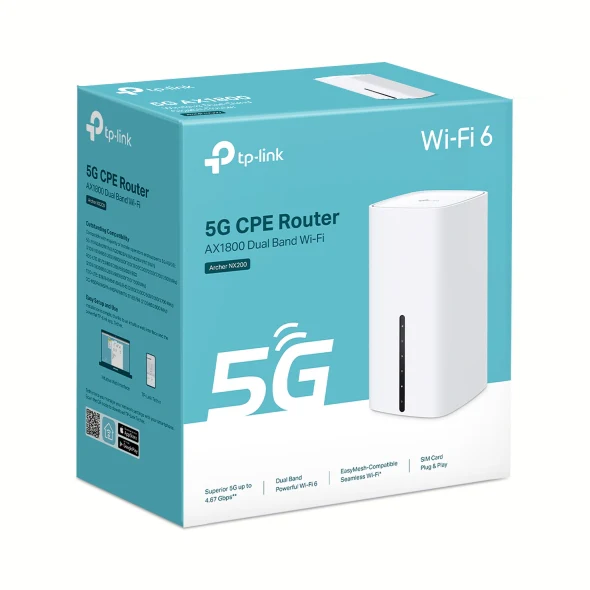

Box Contains:

• 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
• 1.5m Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
